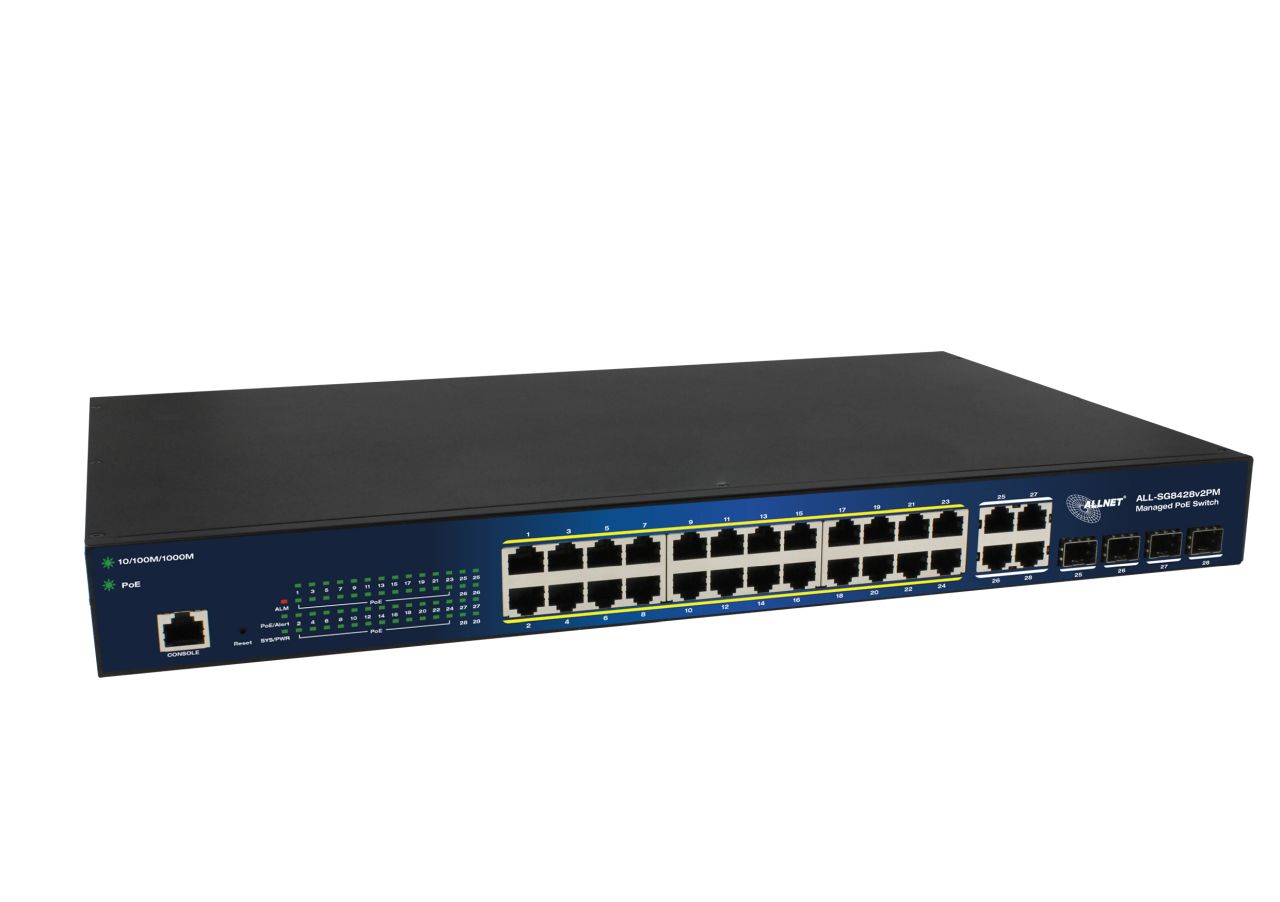

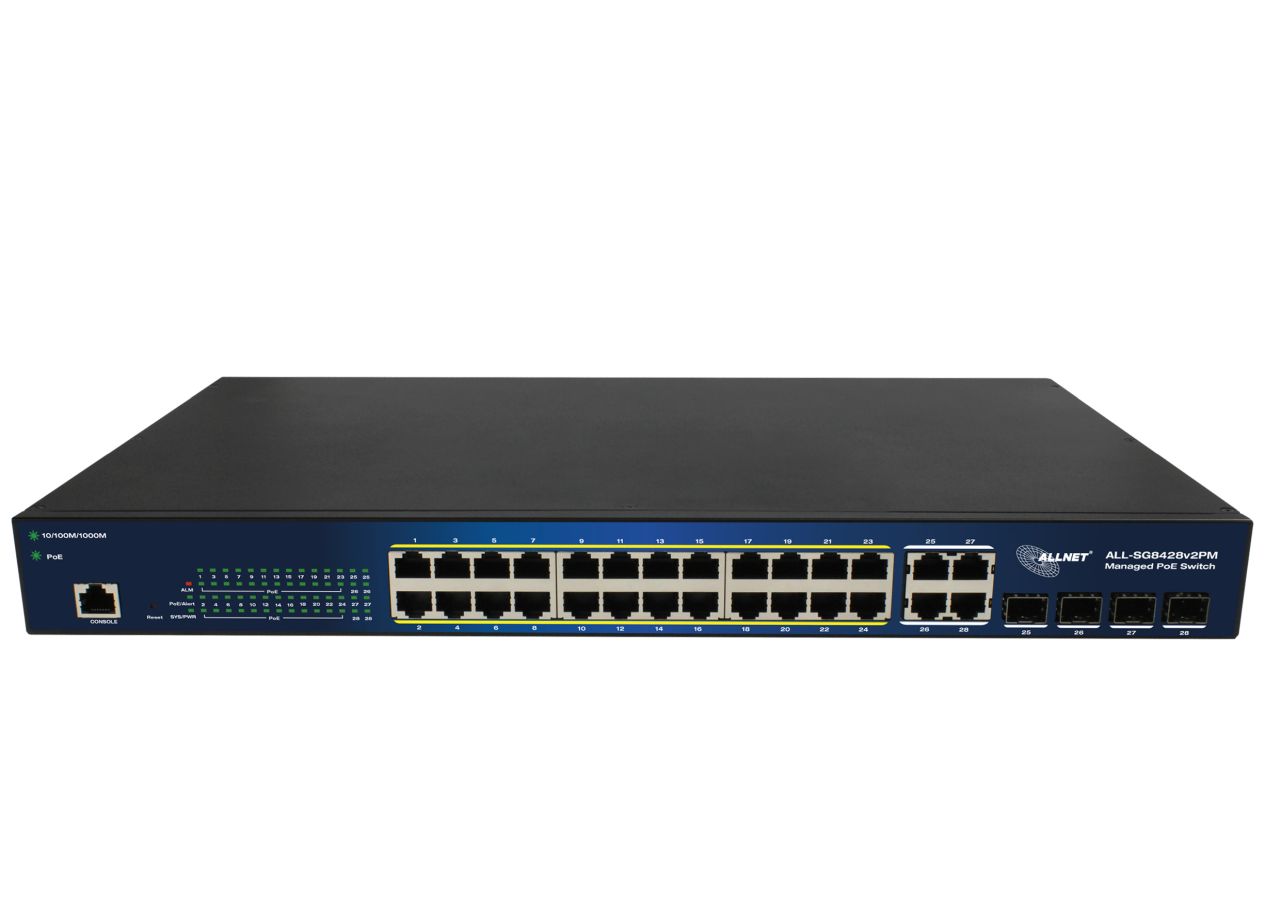

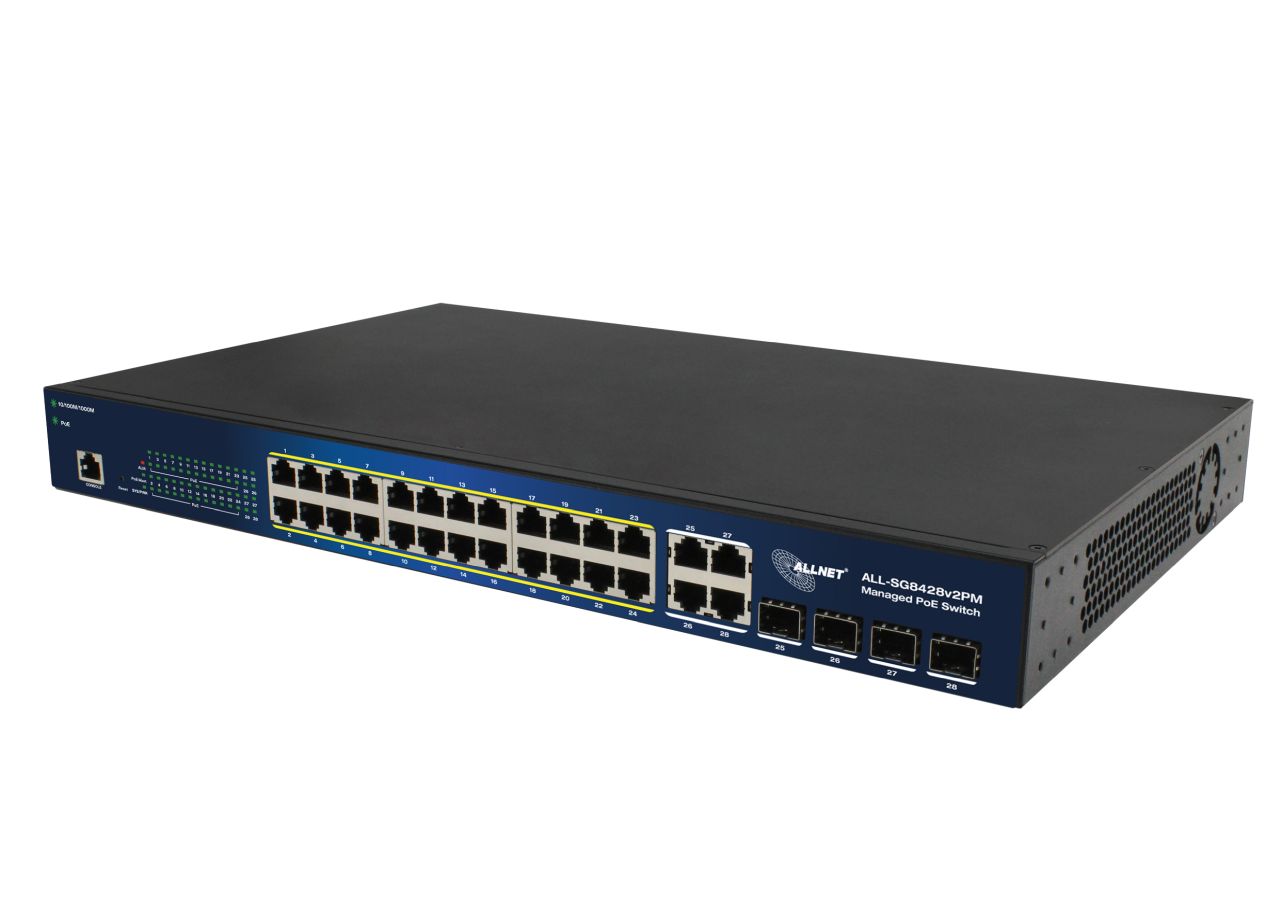

ALLNET Switch smart managed Layer2 24 Port PoE Budget 370W 24x PoE at 4x SFP 19" ALL-SG842
Precios incl. IVA legal más gastos de envío
Listo para envío inmediato, tiempo de entrega aprox. 1-3 días hábiles
- N.º artículo: 211066
ALLNET Switch smart managed Layer2 24 Port • PoE Budget 370W • 24x PoE at • 4x SFP • 19" • ALL-SG8428v2PM
Highlights:
- 24 Port Gigabit non-blocking Switch Architektur
- Unterstützt NWay Protocol (10/100/1000Mbps) und Duplexmodus (half/full) Auto Detektion
- support back-pressure (half duplex), flow control (IEEE 802.3x und IEEE 802.3az Energy Efficient Ethernet
- VLAN: Port basiert / Tagged basiert
- Link Aggregation (IEEE802.3ad LACP)
- IGMP Snooping (v1/v2)
- QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP)
- Stormcontrol (Broadcast, Multicast, Unicast)
- 370W PoE Budget unterstützt PoE IEEE802.3af/at PSE-Devices
The new ALLNET ALL-SG8428v2PM switch provides an optimal basis for small and medium-sized workgroups with high network and data traffic and enables fast data transmission in the network. With a total of 24 downward-compatible Gigabit ports, the connected computers and servers are reliably and powerfully interconnected. The ALL-SG8428v2PM can pass a maximum PoE budget of 370W to the end devices through the internal 450W power supply. The 24 Gigabit PoE ports support the PoE standard IEEE802.3af and the IEEE802.3at standard. 2 fans are installed on the side of the switch.

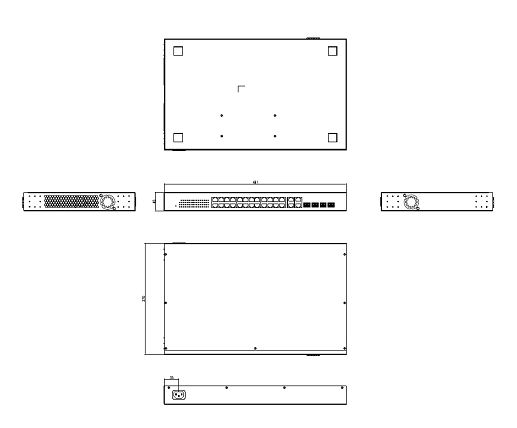

Mechanical Drawings:
Technischical Details:
|
Items |
Specifications |
|
Model No. |
ALL-SG8428v2PM |
|
Key Components |
RTL8382M+RTL8218Dx2+RTL8214FC Flash IC:16MB DDR: 1Gb IP808ARx3 PSE controller |
|
I/O ports |
24x GbE ports, RJ45 4 x port GbE SFP/RJ45 combo Reset Button: reset to default setting, re-start system |
|
PoE ports |
Port# 1~ 24 IEEE802.3at, IEEE802.3af |
|
LED Define |
PWR/SYS: Green LED
PoE Alert: Green LED
ALM: Red LED
Port LED: RJ45:
PoE:
SFP: - Off: disconnected or fail - Green: 100/1000Mbps connected - Blinking: data transmitting |
|
HW feature |
IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3az EEE IEEE802.3x IEEE802.3z IEEE802.3at, IEEE802.3af MAC address Table: 8K Packet buffer size: 4.1M Jumbo Frame: 10K bytes 56Gbps switching capacity Forwarding rate: 41.66Mpps (64-byte package size) |
|
Data Transfer Rate |
Ethernet:10 Mbps (half duplex),20 Mbps (full duplex) Fast Ethernet:100 Mbps (half duplex),200 Mbps (full duplex) Giga Ethernet:2000 Mbps (full duplex) |
|
PoE power pin-out |
Alternative A (Pin 1,2/3,6) |
|
PoE Output power capacity |
Maximum output :30W per each port
|
|
System Monitor |
HW Monitor IC: ADT7476
|
|
Power Input |
Internal power supply Input: 100-240V AC Output: 450W |
|
PoE Power Budget |
370W |
|
Reset button |
Support reset to default configuration |
|
Dimension |
441(W) x 270(D) x 45(H) mm |
|
FAN Design |
6300 Fanx2 (Smart Fan) |
|
Temperature |
Operating: -5~ 50? Storage : -40 ~ 70? |
|
Humidity |
Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 90% RH (non-condensing) |
-
- Software Feature
|
Status |
System Information |
||
|
Logging Message |
|||
|
Port |
Statistics |
||
|
Error Disabled |
|||
|
Bandwidth Utilization |
|||
|
Link Aggregation |
|||
|
MAC Address Table |
8K |
||
|
Network |
IP Address |
Static / Dynamic |
|
|
System Time |
SNTP / From Computer / Manual Time |
||
|
Port |
Port Setting |
State / Speed / Duplex / Flow Control |
|
|
Error Disabled |
Recovery Interval |
ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood |
|
|
Link Aggregation |
Group |
||
|
Port Setting |
State / Speed / Flow Control |
||
|
LACP |
|||
|
EEE |
|||
|
Jumbo Frame |
9K Byte |
||
|
PoE |
Global Setting |
Schedule Status |
|
|
Priority Setting |
|||
|
Power Limit |
|||
|
Power Show |
|||
|
VLAN |
VLAN |
Create VLAN |
|
|
VLAN Configuration |
|||
|
Membership |
|||
|
Port Setting |
|||
|
Voice VLAN |
Property |
||
|
Voice OUI |
|||
|
Protocol VLAN |
Protocol Group |
||
|
Group Binding |
|||
|
MAC VLAN |
MAC Group |
||
|
Group Binding |
|||
|
Surveillance VLAN |
Property |
||
|
Surveillance OUI |
|||
|
GVRP |
Property |
||
|
Membership |
|||
|
Statistics |
|||
|
MAC Address Table |
Dynamic Address |
Aging Time |
|
|
Static Address |
|||
|
Filtering Address |
|||
|
Spanning Tree |
Property |
State / Operation Mode / Path Cost / BPDU Handling |
Operation Mode : STP/RSTP/MSTP |
|
Port Setting |
|||
|
MST Instance |
|||
|
MST Port Setting |
|||
|
Statistics |
|||
|
Discovery |
LLDP |
Property |
|
|
Port Setting |
|||
|
MED Network Policy |
|||
|
MED Port Setting |
|||
|
Packet View |
|||
|
Local Information |
|||
|
Neighbor |
|||
|
Statistics |
|||
|
Multicast |
General |
Property |
Unknown Multicast Action / Multicast Forward Method |
|
Group Address |
|||
|
Router Port |
|||
|
Forward All Table |
|||
|
Throttling |
|||
|
Filtering Profile |
|||
|
Filtering Binding |
|||
|
IGMP Snooping |
Property |
State / Version / Report Suppression |
|
|
Querier |
|||
|
Statistics |
|||
|
MLD Snooping |
Property |
State / Version / Report Suppression |
|
|
Statistics |
|||
|
MVR |
Property |
State / VLAN / Mode / Group Start / Group Count / Query Time |
|
|
Port Setting |
|||
|
Group Address |
|||
|
Security |
RADIUS |
||
|
TACACS+ |
|||
|
AAA |
Method List |
||
|
Login Authentication |
Console / Telnet / SSH / HTTP / HTTPS |
||
|
Management Access |
Management VLAN |
||
|
Management Service |
Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout |
||
|
Management ACL |
|||
|
Management ACE |
|||
|
Authentication Manager |
Property |
||
|
Port Setting |
|||
|
MAC-Based Local Account |
|||
|
WEB-Based Local Account |
|||
|
Sessions |
|||
|
Port Security |
|||
|
Protected Port |
|||
|
Storm Control |
State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) |
||
|
DoS |
Property |
|
|
|
Port Setting |
|
||
|
Dynamic ARP Inspection |
Property |
||
|
Statistics |
|||
|
DHCP Snooping |
Property |
||
|
Statistics |
|||
|
Option82 Property |
|||
|
Option82 Circuit ID |
|||
|
IP Source Guard |
Port Setting |
||
|
IMPV Binding |
|||
|
Save Database |
|||
|
ACL |
MAC ACL |
||
|
MAC ACE |
|||
|
IPv4 ACL |
|||
|
IPv4 ACE |
|||
|
IPv6 ACL |
|||
|
IPv6 ACE |
|||
|
ACL Binding |
|||
|
QoS |
General |
Property |
CoS / DSCP / CoS-DSCP / IP Precedence |
|
Queue Scheduling |
Strict Priority / WRR |
||
|
CoS Mapping |
|
||
|
DSCP Mapping |
|
||
|
IP Precedence Mapping |
|
||
|
Rate Limit |
Ingress / Egress Port |
|
|
|
Egress Queue |
|
||
|
Diagnostics |
Logging |
Property |
Console / RAM / Flash |
|
Remote Server |
|
||
|
Mirroring |
|
|
|
|
Ping |
|
|
|
|
Traceroute |
|||
|
Copper Test |
|||
|
Fiber Module |
|||
|
UDLD |
Property |
Message Time |
|
|
Neighbor |
|||
|
Management |
User Account |
|
|
|
Firmware |
Upgrade / Backup |
Action (Upgrade / Backup) / Method (TFTP / HTTP) |
|
|
Active Image |
Active Image / Backup Image |
||
|
Configuration |
Upgrade / Backup |
Action (Upgrade / Backup) / Method (TFTP / HTTP) |
|
|
Save Configuration |
Source File / Destination File, Restore Factory Default |
||
|
SNMP |
View |
|
|
|
Group |
|||
|
Community |
|||
|
User |
|||
|
Engine ID |
|||
|
Trap Event |
Authentication Failure / Link UP_Down / Cold Start / Warm Start |
||
|
Notification |
|
||
|
RMON |
Statistics |
||
|
History |
|||
|
Event |
|||
|
Alarm |
|||
| Marks | Safety | LVD EN62368-1:2014 | |
| EMC |
CE EN55032: 2015+AC:2016 |
class A | |
| FCC Part15, Subpart B: ANSI C |
| LAN Geschwindigkeit: | 1Gbit/s |
| PoE Port Leistung: | 30W at |
| SFP Geschwindigkeit: | SFP 1GBit |
| Einsatzort Switch: | 19" |
| Anzahl Ports PoE/LAN: | 24/0 |
| PoE Budget: | <500 Watt |
| SFP Port Anzahl: | 4 |
| Belüftung Switch: | Mit Lüfter |
| Management: | smart managed (WebGui) |
