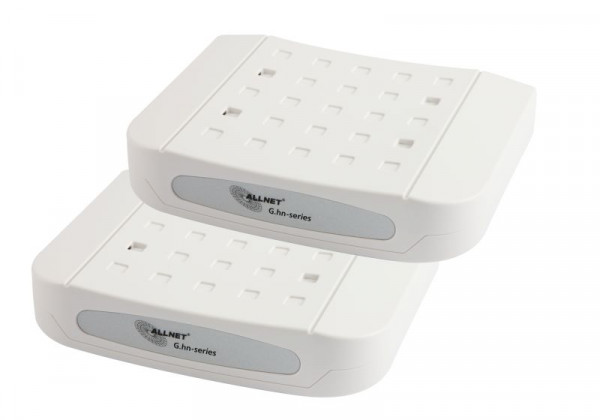

ALLNET ALL-GHN102v2-Coax / G.HN Coax Converter Bundle

311,69 € *

Precios incl. IVA legal más gastos de envío

En breve, disponible de nuevo.

  • 124346
Highlights: up to 500 Mbps G.hn Port as Homenetwork-Backbone over TV-Wirering Two 100 /...más
Información del producto "ALLNET ALL-GHN102v2-Coax / G.HN Coax Converter Bundle"

Highlights:

  • up to 500 Mbps G.hn Port as Homenetwork-Backbone over TV-Wirering
  • Two 100 / 1000Mbps Gigabit Ethernet Ports for FTTH, DSL / Cable Modem and Ethernet-Terminals (PC, Set-Top-Box, ...)
  • Energyefficiency  (green) Ethernet-Support
  • Filter Built-in to Eliminate Noise from TV Signal Indication
  • 6MHZ - 76MHz
  • QoS Priority Mapping Support
  • Tag VLAN Configuration
  • IGMP Snooping Control
  • Status and Statistic
  • up to 8 devices possible

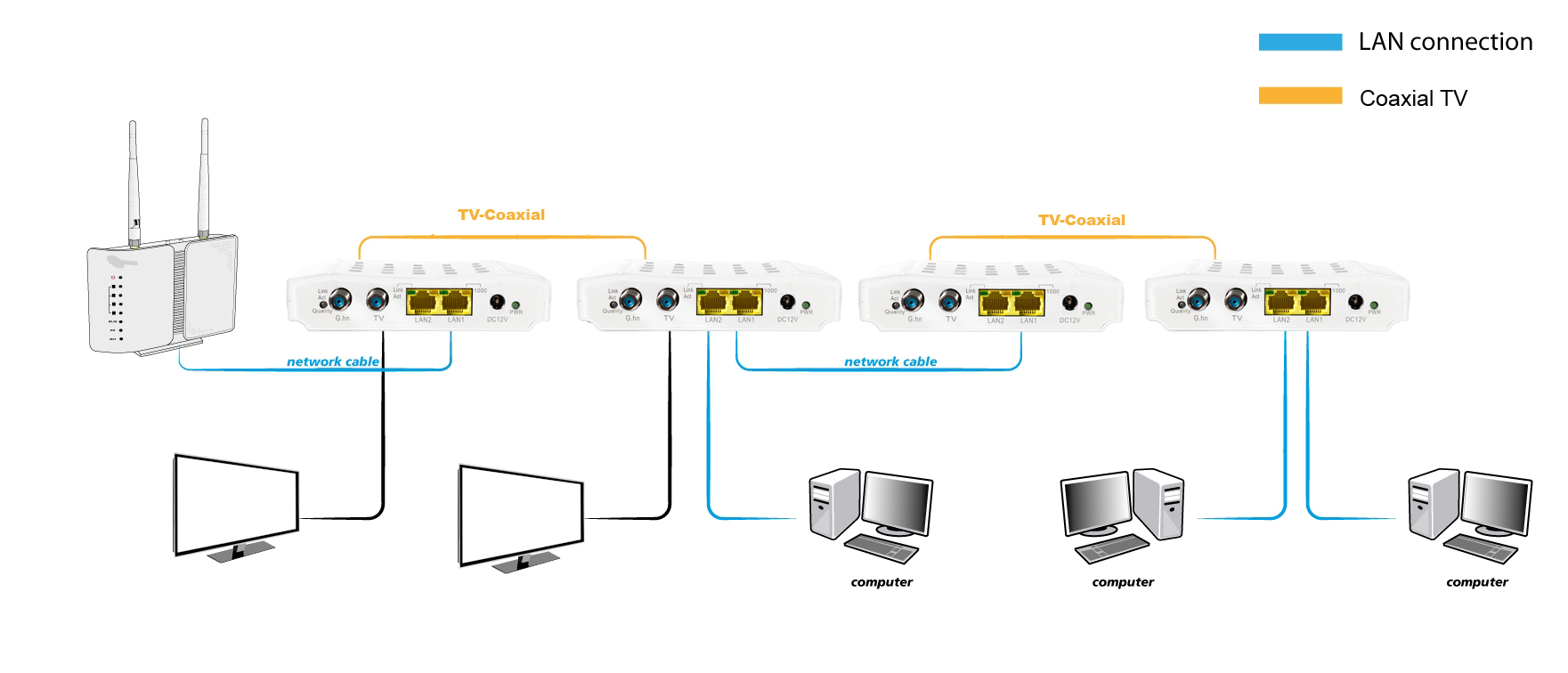

With the G.HN Gigabit Ethernet Bridge ALL-GHN102v2-Coax, you can, with the existing TV cabling, expand your home network at home. There is no additional network wiring required. You can simply use the existing coax wiring in the wall. With the ALL-GHN102v2-Coax they can as quickly expand your network without rewiring and with little effort.



Element

Specification

Network  Standard:

ITU G.9960 G.hn over Coaxial Cable Baseband IEEE 802.3u 100M Fast Ethernet IEEE802.3ab 1000M Gigabit Ethernet

IEEE 802.3az Energy Efficiency Ethernet

Connectors:

Ethernet : Two RJ-45 Connectors

G.hn: Two F-Type Female Coax Connectors, One for G.hn, the Other for TV

G.hn Interface

Spectrum and Transmission Power : 2 +/- 1 dBm @ 6 ~ 76 MHz

PHY Rate: 100m Coax 350 – 360 MBit/s netto 4.5 +/- 1 dBm @ 6 - 76 MHz

AES 128 Encryption

Gigabit Ethernet Interface

100/1000Mbps Auto Negotiation MDI/MDI-X Auto  Crossover

Quality of Service

Priority Mapping Based on IEEE 802.1p Guaranteed G.hn Parameterized QoS

Management

GUI, Web Browser and TR-069 (Optional) IPv4 and IPv6 Support

Queuing Scheme Based on 802.1p/TOS TagVLAN ID Tag/UnTag or Pass Through GMP Snooping Control

Statistic and Status

LED-Display:

“Power” LED

G.hn “Link/Activity/Quality” LED Ethernet “Link/Activity” LED x 2

Environmental  Conditions:

Operating Temperature : 0° ~ 50° (32° ~ 120°)

Storage Temperature –10° ~ 65° (14° ~ 149°) Operating Humidity : 10% ~ 95%, Non-condensing

Power Consumption:

4W on 12 Volt

Physical  Dimension:

130mm (W) x 95mm (D) x 32mm (H)

Marks

CE
