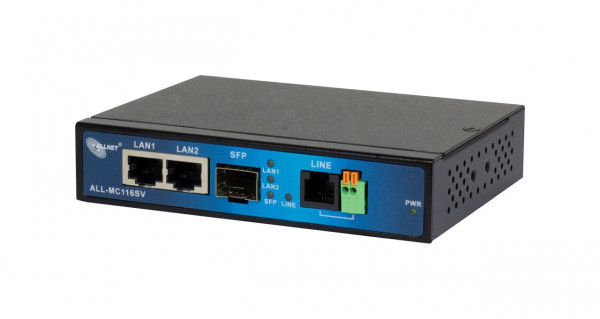

ALLNET ISP Bridge Modem VDSL2 with Vectoring/Point-to-Point Slave Modem "unmanaged "ALL-MC116SV-VDSL

161,69 € *

Precios incl. IVA legal más gastos de envío

Listo para envío inmediato, tiempo de entrega aprox. 1-3 días hábiles

  • 195586
Hightlights: Cost-effective VDSL2/fiber/Ethernet unmanaged bridge modem Supports VDSL...más
Información del producto "ALLNET ISP Bridge Modem VDSL2 with Vectoring/Point-to-Point Slave Modem "unmanaged "ALL-MC116SV-VDSL"

Hightlights:

  • Cost-effective VDSL2/fiber/Ethernet unmanaged bridge modem
  • Supports VDSL profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a
  • Supports 1000Base-X SFP slot
  • Supports ITU-T G.993.5 vectoring
  • Supports G. INP
  • Supports UPBO & DPBO
  • Supports compact size and DIN rail mounting (optional bracket see accessories)
  • Supports Jumbo Frame (MTU) 2K bytes on VDSL side

The ALL-MC116SV-VDLS2 is a cost-effective unmanaged VDSL2 bridge modem. It uses the G.993.2 VDSL2 standard technology for data transmission on only one copper cable pair. Data transmission over only a single copper cable pair. The ALL-MC116SV-VDSL2 is specifically designed to support vectoring for Telcom & ISP to Hospitality solutions for operation on DSLAM's. The modem is therefore compatible with standard VDSL up to 100Mbit VDSL connections. The modem has 2x 10/100/1000Base-T Ethernet ports and an additional 1000Base-X SFP slot offers this extender a flexible solution to extend the LAN network and is perfect for use in buildings, hotels, hospitals or other locations outside the range of 10/100/1000Base-T (Ethernet) or fiber.

Especially the vectoring technology distinguishes the ALL-MC116SV-VDSL2 from its brothers that it is designed for vectoring connection to a DSLAM, no matter if it is used for provider ISP or in-house DSLAM later. Important to note it is an unmanaged device. With unmanaged bridge modem you have NO chance to read out the bandwidth or to set VLAN tags etc.

Technical Details:

Element

Spezifikation

Standards:

IEEE 802.3ab
IEEE802.3u
IEEE 802.3z

Interface:

2x 10/100/100Base-T RJ45
1x 1000Base-X SFP Slot

VDSL2 Interface:

Comply with ITUT G993.2
Connector: RJ-11/Terminal block
DMT Encoding/PTM Transmission
On-board surge protector
MTU: 2K

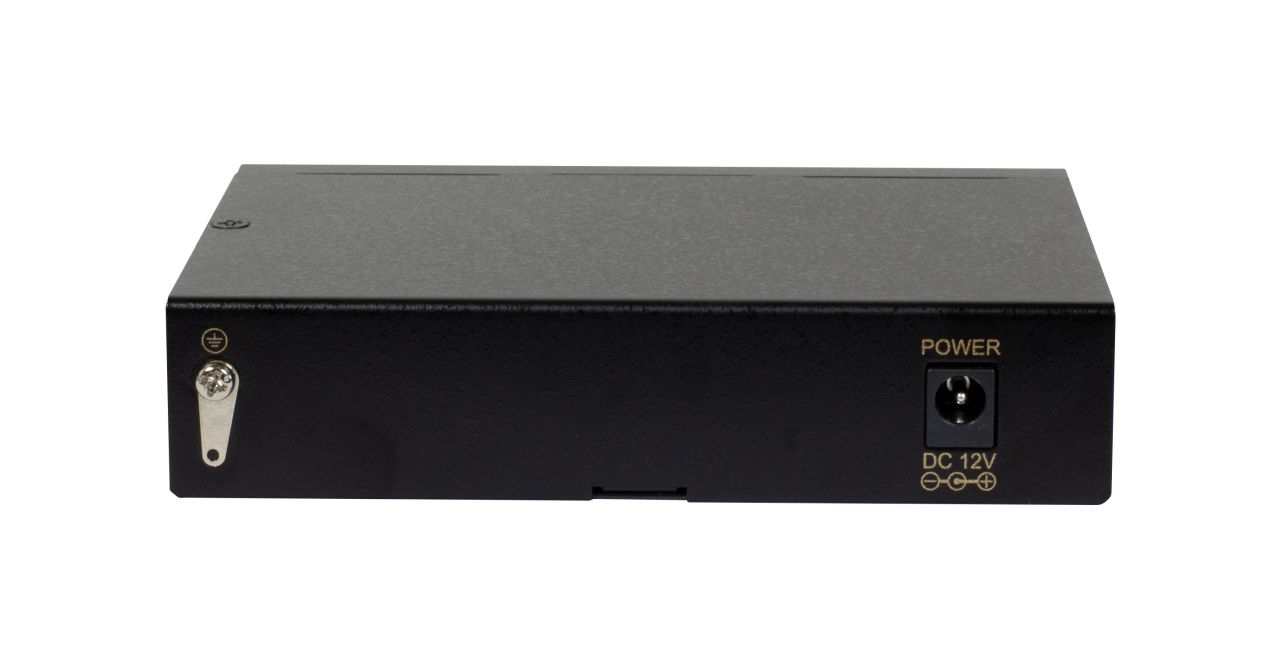

Power supply:

DC 12V via AC switching adapter (including)

Power Consumption:

3W Typical

LED-Indicators:


LAN E1/E2: Act/Link, SFP port: Link
Line: Act/Link, System: PWR


Housing:

Metal housing

Dimensions:

124 x 93 x 27 mm (4.88" x 3.66" x 1.06")


Weight:

Approximately 0.34Kg only the device

Environment:

0~50° C (Operating Temperature)
-20~70° C (Storage Temperature)
10 - 90% (non-condensing Humidity)

Marks:

CE, FCC, RoHS Compliant

Package contents:

1x ALL-MC116SVDLS2 modem
1x external power supply
1x manual
